Unique folding smart electric scooter manufactured in the Czech Republic.

Move from place to place with ease you've never known before. A system based on sensors located in the hub of the scooter records the movement activity of a person and thus reacts to all your stimuli, whether you want to increase or slow down, the scooter will adapt to what you demand from it, experience a sense of synergy and enjoy the joy of fast and easy movement.

Three modes, many options

There are a large number of settings that you can use, then all you have to do is bounce. Using the mobile application, individual parameters can be set, thanks to which you can adapt the behavior of the scooter directly to your needs.

In PEDELEC mode, the e-scooter will add the required power of assistance to each of your kicks and you will be able to move with unprecedented ease. If your speed drops to 6 km/h the scooter maintains this speed on the level, as it is the speed of a person when walking briskly, so it is easy to move between people. The maximum speed of assistance is up to 25 km/h, assistance is activated from 6 km/h..

In the FUN mode, it adds another function, maintains the last achieved speed on the plane (for a period according to the settings in the application). Of course, rebound assistance is also used, as in PEDELEC mode. Both modes also include the option to set the recovery of electrical energy, the maximum assistance speed in FUN mode is 20 km/h.

If you want to have a little fun and ride the scooter as it should and should be without assistance, simply set the mode to OFF - standard scooter mode.

No cables

No more worrying about cables, no more unwanted damage. A unique system based on an All-in-one solution where everything, including sensors and batteries, is placed in a compact electric hub with a nominal power of 250 W.< /p>

No registration and insurance

The Footbike Pedelec mode meets the strictest German legislation for electric scooters without the need for registration and insurance!

*Legislative requirements may differ for specific countries, so always check with the relevant authority for that country. For example, in the Czech Republic, all modes can be used without restrictions.

Safe and controllable

The large front wheel ensures easy passage over bumps, and the premium German Schwalbe tires ensure comfort. Refined geometry based on many years of experience in the production of scooters for easy handling and high stability is the basic building block of the scooter. No more curling up on a small, unstable e-scooter!

The Shimano brakes then provide perfect braking performance. Now you will simply enjoy the ride!

Control using a mobile application

Using Bluetooth, easily connect to your mobile device and you can easily monitor speed, distance traveled or your location. The entire setting takes place in the mobile application, where you can select individual parameters such as:

Boost (intensity of assistance during rebounding),
Assistance (distance over which the speed achieved with the help of rebounds will be maintained - up to 1km),
Braking (intensity of braking using the BT controller, active only with the BT controller - not included in the package!)
High speed braking (intensity of regenerative braking - active from 30 km/ h).


Multiple scooters can be paired to the created account and always choose the right one. However, you don't need a smartphone to drive! It is only used to set the appropriate mode.

mobile application

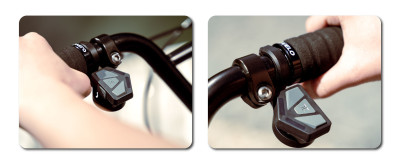

Or using a bluetooth controller!

Bluethooth controller for your e-Kosteka scooter is used to easily change modes while riding and in no time. Adapt your e-Kostek to your current requirements and enjoy an even greater synergy of movement between you and your scooter. Do you need maximum performance immediately? Hold the boost button. Do you want Browall and return your spent energy back to the flashlight? Use the regenerative braking button and all without cables.

controller

Recovery and fast charging

Recovery can be used when braking or driving downhill. You can easily recharge part of the spent energy. The charging speed is only about 2 hours using a standard 2A charger, so you don't use up your battery unnecessarily and it can handle more than 1000 charging cycles! strong>

In PEDELEC mode, recuperation is activated at a speed of 30 km/h, in FUN mode at 25 km/h strong>. The recovery intensity can be set in the application.

With a long range

Thanks to sophisticated power management and a recuperation system, the lithium battery capacity of 160 Wh in mode PEDELEC ensures that the range is reached even >more than 50 km and in FUN mode then easily over 20 km. Of course, it always depends on the setting of the assistance, the route profile and the weight of the rider.

Stretch your body

We have retained the excellent characteristics of a sports scooter. Thanks to this, the ride is not only quick and easy, but you can also stretch your whole body along the way without unnecessary effort. Want to take a nap on your way home from work? Reduce engine power, switch mode and do something for your health!

The scooter stretches and strengthens the muscles, improves the condition of the joints and helps against back pain.

Low weight and high load capacity

The carrying capacity of the scooter is designed for up to 120 kg of weight under dynamic load. We test the life of scooters at our unique automatic test station, where real driving is simulated and the fatigue behavior of the material is monitored. The low weight of the electric scooter guarantees excellent driving characteristics and handling.

Foldable

Within a few seconds you can easily fold the scooter in two steps. The FOLD system ensures folding of the handlebars, SPIN then turns the frame around its axis. This gives you a compact package that you can take with you on public transport, a train, a car, an apartment or store anywhere you need to. Our unique folding systems will help you with this!

No one will ride with her

E-KOSTKA has the ability to lock the motor as protection against unauthorized use. When the e-KOSTKY motor is not rotating, the speed indicator changes to a lock icon and the motor can be locked. If the lock is activated, the engine has a high resistance to turning, and normal driving is not possible. If you try to control the application or ride on e-KOSTKE while it is locked, you will be notified by a message in the application.

The motor lock function does not replace a classic bicycle lock and does not secure the scooter against theft!

E3 scooter innovation:

  • Narrow rear hub spacing (100mm) and 20" rear wheel.
  • New and stiffer 6th generation frame for an even better driving experience.
  • Increasing torque of the engine.
  • Increased battery capacity by 15%.
  • Renovated engine and shaft support in a new polished aluminum chassis.
  • New control electronics and mobile application.
  • Reduced engine noise and improved cooling.
  • New generation Bluetooth 5.1 - faster connection of a mobile device with an electric scooter - without the need for pairing, just have both devices active and within range.
  • Automatic software update via mobile application.
  • Smoother starting and coasting of the engine.
  • Improved engine response - the engine responds better to the rider's inputs, including a smoother start of recuperation.
  • Smooth setting of parameters.
  • Possibility to connect BT controller.
  • Possibility of connecting the SIGMA EOX VIEW 1300 cycling computer (soon in stock!)

e-TWENTY

20"-20" medium-sized universal electric scooter for trips and in the city, with rear drive for perfect driving characteristics

The electric scooter KOSTKA TWENTY (G6) is a universal scooter, which, thanks to its design with the same size wheels, is very popular with the more beautiful half of the scooter population, but not only there. It is not as large as models with a larger front wheel (such as the Kostka Tour), which is more convenient in many situations. At the same time ale provides the same space for an adult rider - so you are not deprived of riding comfort. Two wheels of the same size will support you in every situation, whether you are driving on asphalt or sometimes your path crosses a field or forest path.

The Schwalbe Marathon Racer tyres, which adhere best to smooth asphalt, but also do not disdain a dirt road or a forest road, will take care of the absolutely precise guidance of the driving path.

An efficient, fast and comfortable ride is thanks to the double-walled Dragon rims equipped with turned brake surfaces with stainless steel thread and the front hub Kostka HK 1024 RS on industrial bearings.

Once in a while you will surely hit a bump with the step of the e-scooter, it simply cannot be avoided... In order to protect the frame itself in these collision situations and thus extend its life, we provided the underside of the step with special welds and reinforcement, which at the same time increases the stiffness of the scooter.

This scooter is fitted with ergonomic handlebars Kostka FBH 680-240 St, which were developed specifically for scooters. The ends of the handlebars are adapted to your wrist and natural grip, so there is no unnecessary strain on your hands.

e-TWENTY

20"-20" universal folding electric scooter of medium size for trips and in the city, with rear drive for perfect driving characteristics

The electric scooter KOSTKA TWENTY FOLD (G6) is a universal scooter, which, thanks to its design with the same size wheels, is very popular with the more beautiful half of the scooter population, but not only there. It is not as large as models with a larger front wheel (such as the Kostka Tour), which is more convenient in many situations. At the same time, it provides the same space for an adult rider - so you are not deprived of riding comfort. Two wheels of the same size will support you in every situation, whether you are driving on asphalt or sometimes your path crosses a field or forest path.

The Schwalbe Marathon Racer tires, which adhere best to smooth asphalt, but also do not disdain a dirt road or a forest road, will take care of completely precise driving.

An efficient, fast and comfortable ride is thanks to the double-walled Dragon rims equipped with turned brake surfaces with stainless steel thread and the front hub Kostka HK 1024 RS on industrial bearings.

Once in a while you will surely hit a bump with the step of the e-scooter, it simply cannot be avoided... In order to protect the frame itself in these collision situations and thus extend its life, we provided the underside of the step with special welds and reinforcement, which at the same time increases the stiffness of the scooter.

This scooter is fitted with ergonomic handlebars Kostka FBH 680-240 St, which were developed specifically for scooters. The ends of the handlebars are adapted to your wrist and natural grip, so there is no unnecessary strain on your hands.

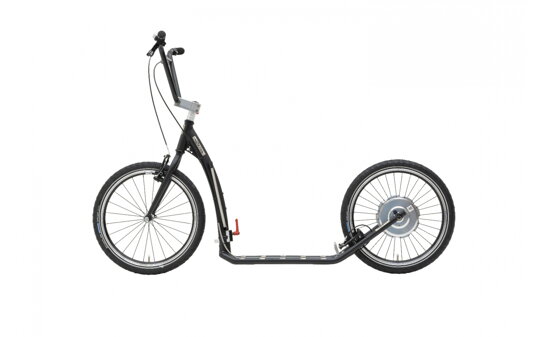

The e-Twenty Max Fold E3 scooter is based on the Twenty Max Fold G6 scooter.

Basic specifications:

  • Weight13 kg
  • Carrying capacity frame150 kg
  • Length1580 mm
  • Height1020 mm
  • Tread clearance 50 mm
  • Step height 76 mm
  • Tread length 440 mm
  • Wheel wheelbase 1080 mm
  • Front wheel size 20"
  • Rear wheel size 20"
  • Handlebar width 680 mm
  • Height (folded with back. around) 730 mm
  • Length (folded with back. around) 1210 mm
  • Height (folded without rear wheel) 730 mm
  • Length (folded without rear wheel) 960 mm
  • Battery type Li-ion (172.8 Wh, 6.0 Ah, 28.8 V)
  • Nominal motor power 250 W (Brushless)
  • Max. speed20, 25 km/h
  • Full charge in about 2.5 h
  • Rangeabout 50 km

Equipment:

  • Fork fixed 20" - 100 mm
  • StemKOSTKA FL 2822 S
  • HandlebarsKOSTKA FBH 680-240 St
  • BrakesShimano 4000
  • Handle hardened foam - safety
  • Headset A-Head 1"
  • ChubsKOSTKA HK 1024 RS
  • Bearings (Hubs) Industrial
  • RimsDouble walled - DRAGON
  • ShoesSchwalbe Marathon Racer
  • Inners of car valves
  • Sprays stainless steel - black
  • Plugs plastic reflective
Barva: Černá
Rychlost (km/h): 20,25
Hmotnost: 13
Dojezd (km): 50
Výkon (W): 250
